Purpose
Draws the record group column in the browser.
Class
Type
Method
Syntax
<oBrowser>:DrawRecordGroup(
<hDC>,
<srcInvalid>
) Æ lDraw
Arguments
<hDC> | The DeviceContext in which the record group column must be drawn. |
Data Type: | Pointer |
<srcInvalid> | The rectangle structure that defines the area which must be drawn. |
The structure must be specified by reference.
Data Type: | _winRect |
Return Value
lDraw | A logical value that indicates whether the record group column was drawn. |
TRUE | The record group column was drawn. |
FALSE | The record group column was not drawn. |
Data Type: | Logic |
Description
bBrowser:DrawRecordGroup() draws the record group column. The record group column contains the buttons to expand and collapse the record groups, the group leash and the info values. The method is called automatically by the method bBrowser:Draw().
bBrowser with record group column

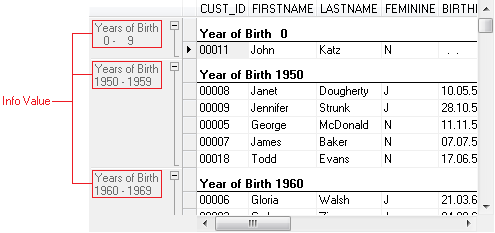

bBrowser with record group column and info values
See Also
