bBrowser:CellGroup

Print this Topic    Previous pageReturn to chapter overviewNext page

Purpose

List of cell groups which are drawn over the grid.

Class

bBrowser

Type

Access

Data Type

bCellGroupList

Description

The cell groups in the list are drawn in the bBrowser over the grid. The cell groups are drawn in the order as they are contained in the list.

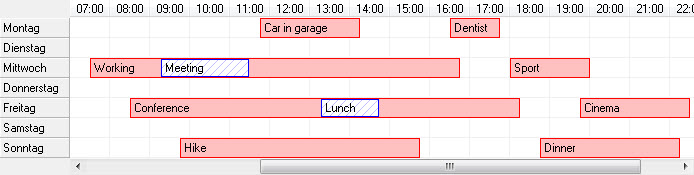

CellGroupsInBrowser

bBrowser with several cell groups



With the options in every cell group the graphical representation of a cell group can be defined. Among other things it can be defined, that the grid and the cell contents should  transilluminate by the cell group. The option BCGISO_TRANSPARENTBACKGROUND must be defined in the cell group for this behaviour.



So that changes that were made in the list of cell groups are also shown in the browser, it must be redrawn with the method bBrowser:Redraw().

Samples

A cell group with the text 'car repair' like in the image above is defined in the following example. It is presupposed that the bBrowser is already initialized.



LOCAL oBrowser        AS bBrowser
LOCAL oStartCell      AS bCell
LOCAL oEndCell        AS bCell
LOCAL oBorderStyle    AS bBorderStyle
LOCAL oViewStyle      AS bCellGroupItemStyle
LOCAL oCellGroupItem  AS bCellGroupItem

// Define start and end cell of the cell group
oStartCell := bCell{13, 1, 1}
oEndCell := bCell{16, 1, 1}

// Define options for the representation of the cell group
oBorderStyle := bBorderStyle{BBS_SOLID,;
                             Color{COLORRED},;
                             1,;
                             0,;
                             bRectangle{3, 0, 3, 0}}

oViewStyle := bCellGroupItemStyle{Color{COLORBLACK},;
                                  Brush{Color{COLORRED}},;
                                  _Xor(BALIGN_LEFT, BALIGN_VCENTER),;
                                  ,;
                                  ,;
                                  oBorderStyle,;
                                  _Or(BCGISO_VALUEVISIBLE, BCGISO_END_ELLIPSIS)}

// Create cell group
oCellGroupItem := bCellGroupItem{oStartCell,;
                                 oEndCell,;
                                 oViewStyle,;
                                 "Car repair"}

// Add cell group to the browser
oBrowser:CellGroup:Add(oCellGroupItem)

// Important!!!
// -> Redraw browser
oBrowser:Redraw(#Data)

See Also

bBrowser:Redraw()

bCellGroupItem

bCellGroupItemStyle

bCellGroupList

bSample - CellGroups
